ECM Mechanika Max

$4,325.00

RRP $4,699.00

With a wide range of advanced features in a compact design, the Max stands out as one of the most innovative and precisely engineered heat exchange machines on the market.

Available on back-order

Product Information

Description

The ECM Mechanika Max features the brand’s innovative Smart HX system, making it one of the most versatile heat exchange machines available. With over 19 programmable menu options, it allows for a highly personalised coffee experience, while delivering exceptional temperature stability and precise brew control rarely seen in HX machines

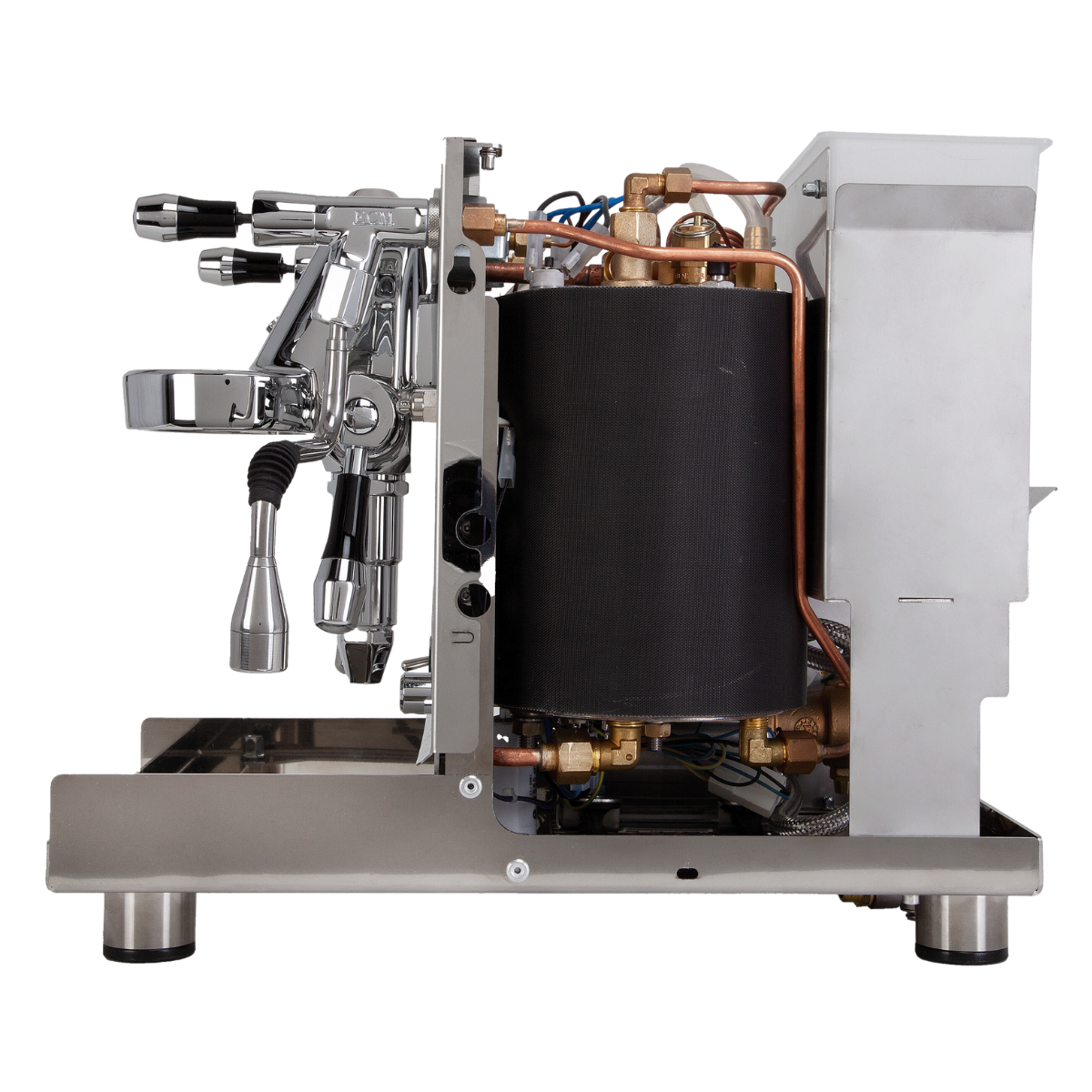

The Mechanika Max delivers brew temperature consistency on par with a dual boiler machine, thanks to ECM’s Smart HX system. Equipped with two independent PID controls—one in the boiler and another at the brew group inlet—the system continuously monitors and regulates the actual brew water, ensuring the thermosyphon loop maintains the set temperature with exceptional accuracy.

Combined with a wide range of advanced features in a compact design, the Max stands out as one of the most innovative and precisely engineered heat exchange machines on the market.

  • Brew temperature control with three settings, for directly setting the ideal brewing temperature
  • Automatic on/off timer function
  • Flush Advisor indicated when the brew water temperature is too high removing guesswork
  • Simple to operate
  • Ability to adjust brew temperature and boiler temperature
  • A warning for when cleaning is required
  • Adjustable pre-infusion with active and passive separately defined
  • Range of convenient and user-friendly smart features via the PID controller
  • High-end ECM brew group with innovative stainless steel brew group
  • Easy access to the water tank through removable cup warming tray
  • Quiet rotary pump
  • Switchable from water tank to a fixed water connection
  • Professional quick steam and hot water lever valves
  • Larger pressure gauges
  • 2 ergonomically angled ECM portafilters with weight-balanced shape and angled grip

Specifications

Model Mechanika Max
Pump Rotary
Thermal Control PID
Boiler Style Heat Exchange
Boiler Capacity (L) 1.9
Water Tank 3
Amperage 10 amp
Width (mm) 275
Depth without portafilter (mm) 445
Height (mm) 405
Unboxed Weight (kg) 23.5
Warranty
 24 Months Manufacturers
Recommended Retail Price inc GST $4,699.00

Warranty

  • 24 Months Warranty (Parts & Labour)

Boiler Type

Heat Exchange
Manufacturer

ECM
Pressure Profiling

No
Pump Type

Vibration
Shot Timer

No
Size

Compact
Temperature Control

Pressurestat
Warm up time

15-30 min
Water Supply

Tank Only
